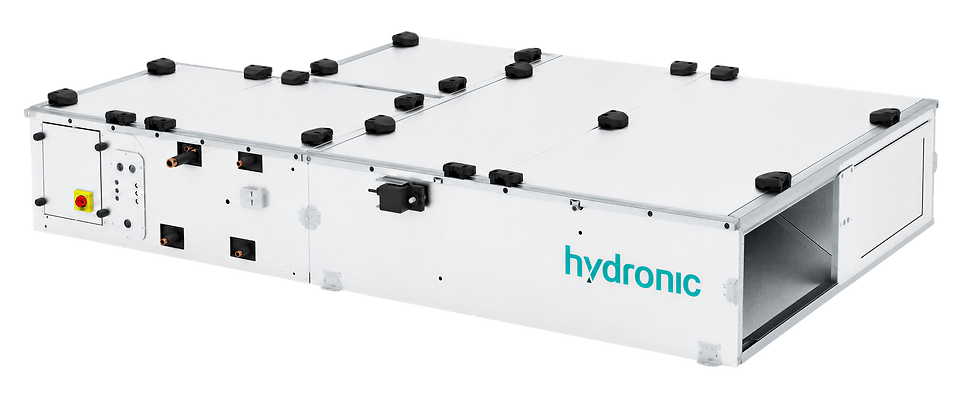

AXB

The new generation of One To One unit

Comfort and air quality for all types of non-residential buildings, for construction and refurbishment projects of schools or sports centers, etc. The MCX energy range offers users well-being and hygienic comfort.

AIRFLOW

800 – 50,000 m³/h

Airflow 800 – 50,000 m³/h

—

70 mm double-skin walls

—

Recovery wheel, counterflow plate exchanger or recovery coils

—

Slide-mounting filters, front or side removal

—

Indoor or outdoor placement

—

Certified by Eurovent

—

/ APPLICATIONS

Schools · Sports centers · Non-residential buildings · Refurbishment projects

Calculate with your requirements

/ THE MCX PLATFORM

Modular Compact Air Handling Unit

A flexible modular design with a wide range of components to fit every need: 21 single flow sections and 24 double flow sections, with up to 110,000 component and housing combinations.

Casing & design

Dual-wall insulation, 50 or 70 mm

—

Continuous insulation without thermal bridge — class T2 & TB2

—

Air tightness class L1, mechanical strength class D1

—

Patented X-DOOR full-height access door

—

Filters

—

ePM10 to ePM1, and HEPA from E10 to H14

—

Bag, flat, pleated or active carbon, single or combined

—

Adjustable filter railway, F9 compatible

Fans & controls

—

EC plug fan motor, IE5

—

Anti-vibration air connection frame

—

Integrated electrical cabinet and cable tray

—

Pre-wired power cable

Coils & heat recovery

—

Coils manufactured in-house — hot water, steam, cold water, evaporator

—

Copper or stainless-steel tubes, special Heresite coatings

—

Recovery wheel, counterflow plate exchanger or recovery coils

X-DOOR

PATENTED

A patented full-height door that ensures an airtight seal for thermal insulation between the tunnel and the door. The door is mounted on special hinges that allow it to be easily and completely removed.

FILTER FLOW RATE (M³/H)

Single flow

Double flow

with recovery wheel

Double flow

with plate exchanger

0

10k

20k

30k

40k

50k

Components are selected for each project from the first consultation — including BIM schematics. See how selection works →

Well-managed energy consumption

Too powerful or not enough: your unit must adapt to the specific characteristics of your project. The MCX design process avoids the plateau effect of standard equipment. The MCX is sized to meet your exact needs and control your energy costs.

High-quality filters

For each application, a different filtration need. Slide mounting filters with front or side removal.
High-quality filters with no loss of efficiency or excess energy consumption: bag type, flat, pleated, active carbon, single or combined use.

Optimized acoustic comfort

The specific assembly of sections ensures solid mechanical strength (70 mm walls), fewer air leaks and reduced system effects. Total comfort for installers, technicians and end users

Heat recovery

High-efficiency heat recovery options to ensure maximum performance and air quality:

Recovery wheel: condensing, hygroscopic or adsorption types
Counterflow plate heat exchanger with partial or total bypass control
Recovery coils

Built section by section

/ TECHNOLOGY

Each MCX is assembled from sections selected for the project, not adapted from a standard unit. Solid 70 mm double-skin walls, controlled air leakage and reduced system effects — specified once, delivered as specified.

800 – 50,000 m³/h

AIRFLOW RANGE

70 mm

DOUBLE-SKIN WALLS

3 types

HEAT RECOVERY
